Semi-automated production cell

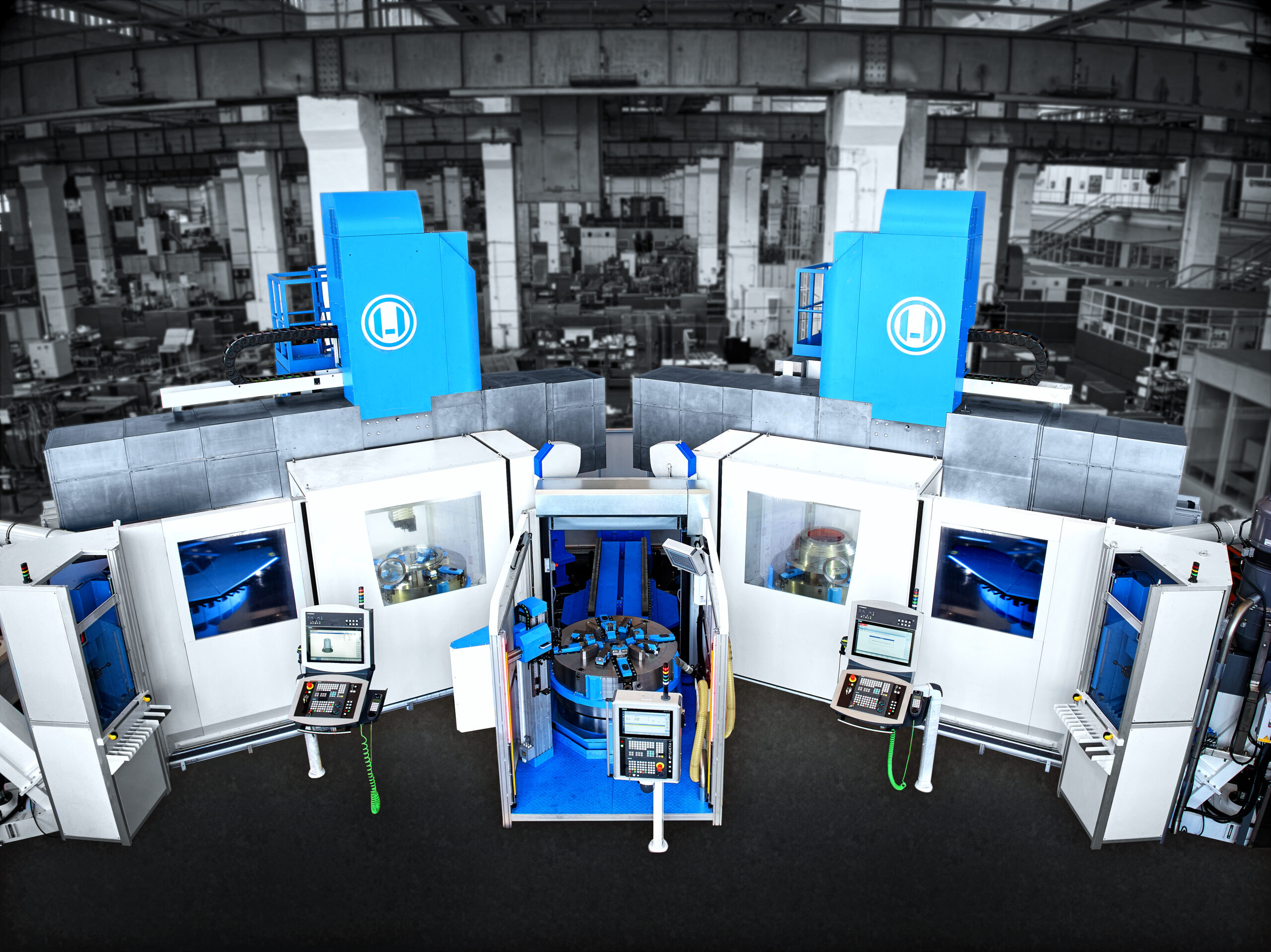

The automated production system consists of two POWERTURN 1250 S1 vertical lathes. The system is equipped with a shared system for automatic exchange of pallets. The concept of the system is designed so that most of the processes run automatically. The entire system is operated by a single operator. The control system software supports the operator. The system is integrated into the IT structure of the plant.

• Aerospace applications.
• Machining of special alloys.
• High coolant pressure 150 bar (UHPC).
• One man operation.
• Automated tool management.
• Automatic tool manipulator for maximum operator ergonomics.

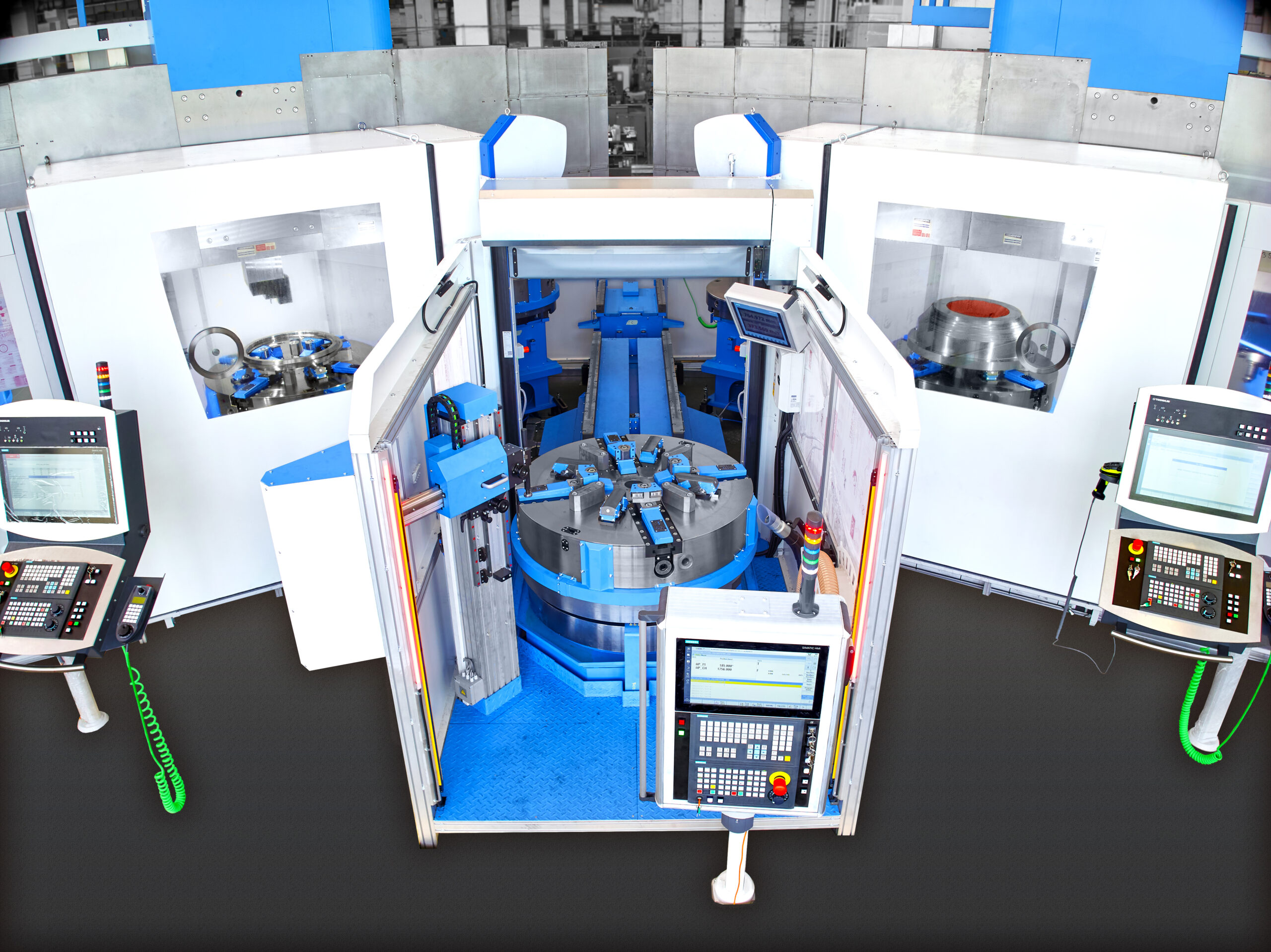

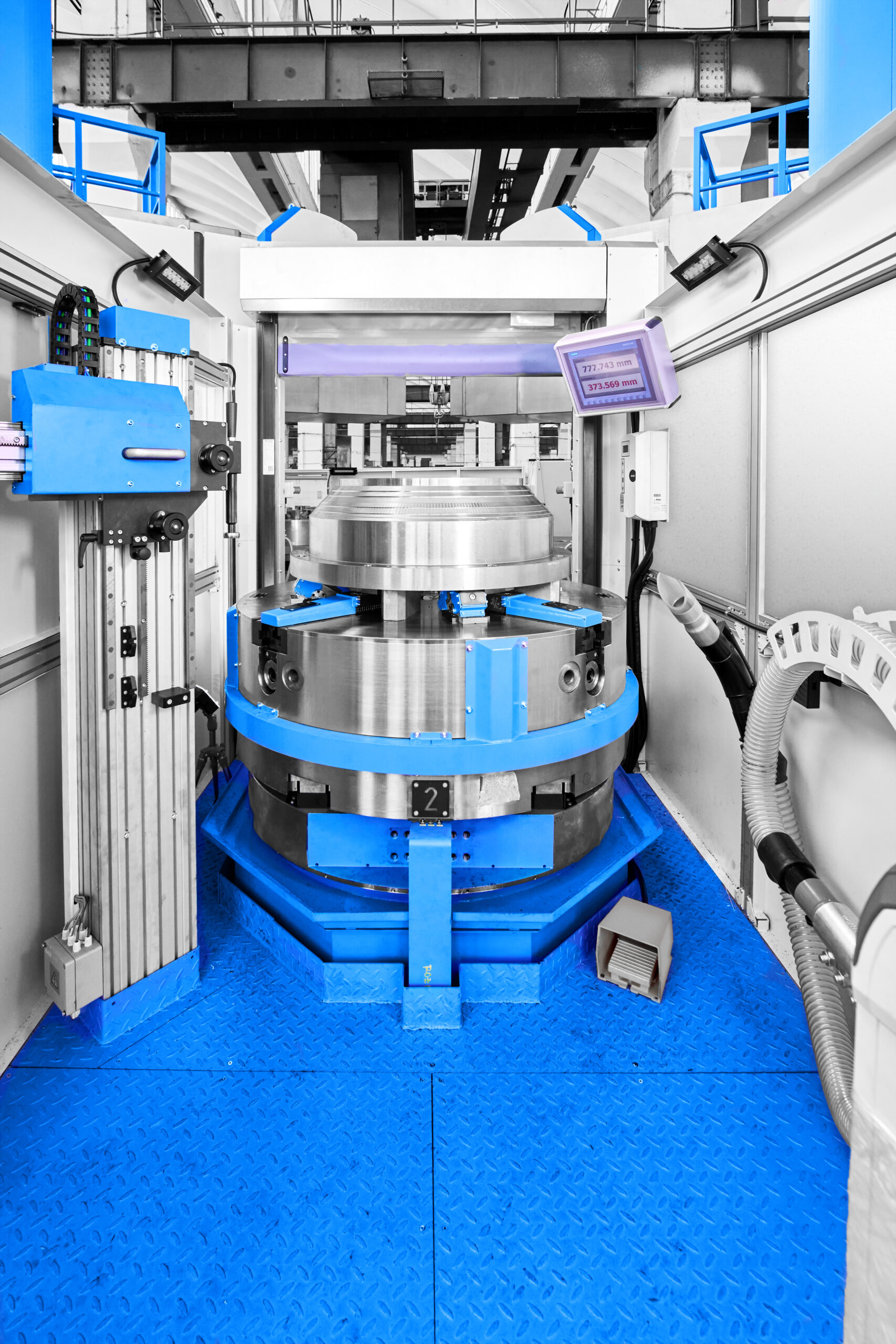

• Semi-automatic adjustment of workpieces at the loading station.

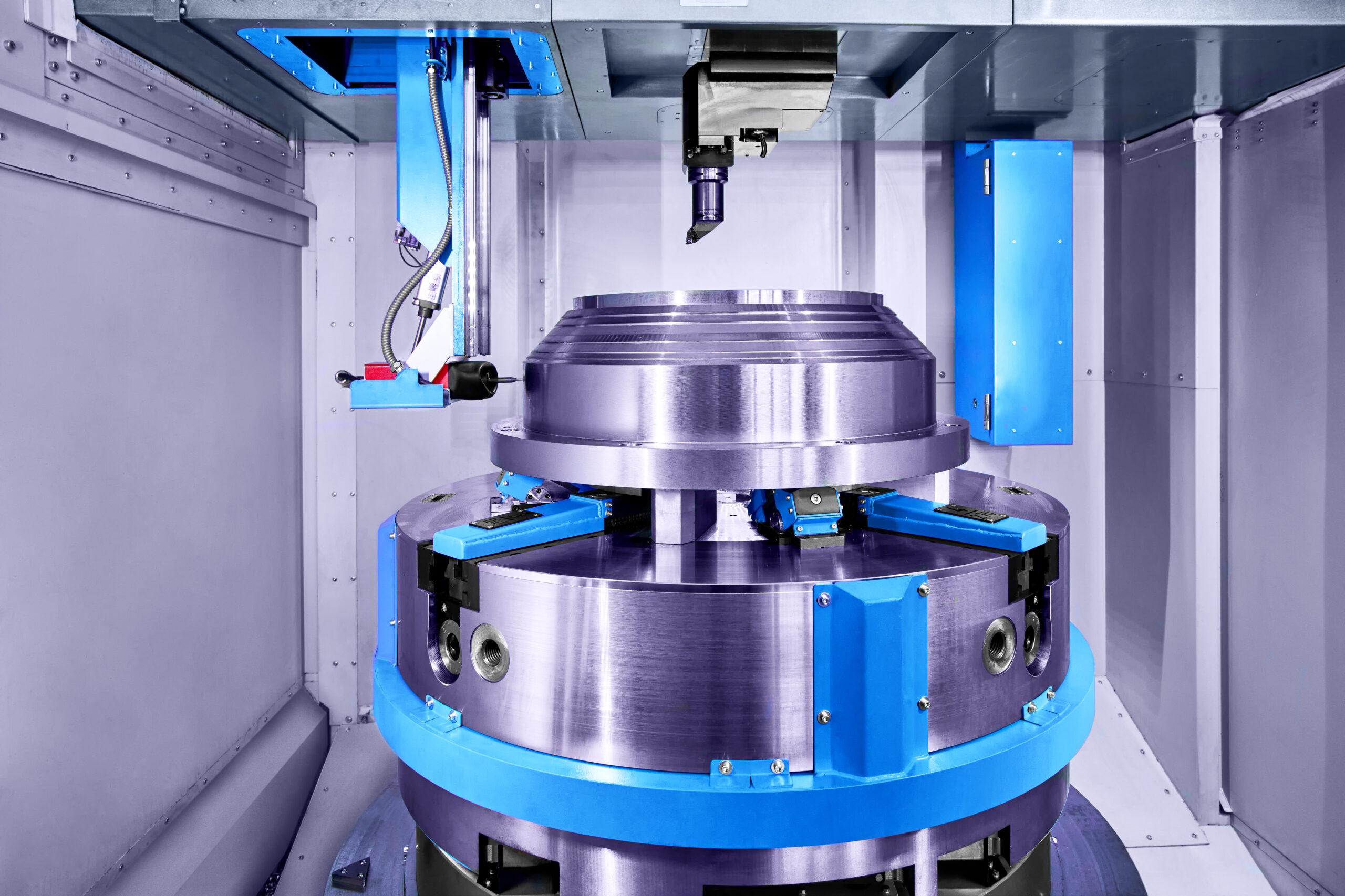

• Integrated marking device.

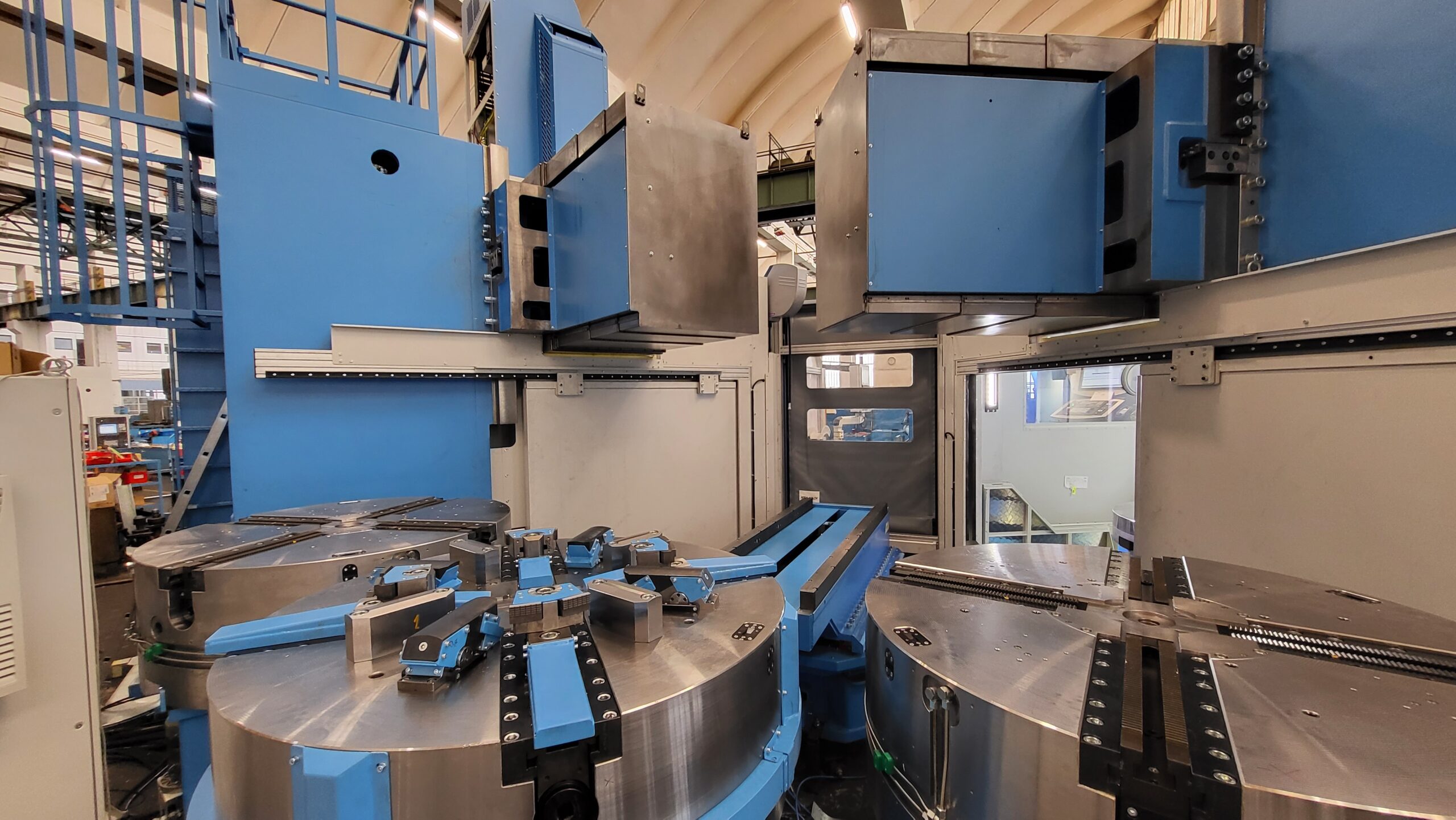

• 5 technological pallets with integrated hydraulic chuck.
• Connectivity with the parent IT system (ERP, MES).
